Flame Resistant Esab 95mm Polycab Welding Cable

Name: Flame Resistant Esab 95mm Polycab Welding Cable
Brand: HOLD-ONE
Price: 0.80 USD

Quality Flame Resistant Esab 95mm Polycab Welding Cable for sale

Place of Origin : Shanghai, China

Brand Name : HOLD-ONE

Model Number : Welding Cable

Supply Ability : 1000000 Meter/Meters per Week

Packaging Details : (1) Packing Lengths: 100m/roll, 200m/roll, 500m/roll. (2) Inner packing: Wooden reel, plastic reel. (3) Outer packing: Carton box, pallet. (4) Other packing available according to client's Request

MOQ : 1000 Meter/Meters

Price : $0.80 - $1.50/ Meter

Insulation Material : PVC/Rubber

Type : Low voltage,Rigid/ Flexible round, Low Voltage

Application : Power Station/welding machine

Conductor Material : Copper/Tinned Copper

Jacket : PVC 5V-90/Rubber

Rated voltage : 250/440V ; 300/500V ; 450/750

Color : Any color, customized

Service Life : 25 Years

Rated temperature : -50°C~105°C

Standard : AS/NZS 5000.2

Section : 10mm2~400mm2

Port : ShangHai

Contact Now

Flame Resistant Esab 95mm Polycab Welding Cable

Product Specificatin

Product Name	Welding Cable
Product standard	AS/NZS 3191 Generally to AS/NZS 5000.1
Core	Single (optional)
Working life	<25years
Type of conductor	class 5 copper,tinned copper
Material of conductor	Copper/Aluminum
Material of insulation	PVC/Rubber
Color of core insulation	Red/White/Blue/Black/Green/Yellow(Optional)
Material of Jacket	PVC/Rubber/As your requirement
Voltage	250/440V ; 300/500V ; 450/750V
Advantage	Flame resistant/Low smoke/Halogen free
Section	10mm2~400mm2
Property	Heat-resistant

Flame Resistant Esab 95mm Polycab Welding Cable

Product Parameter

Section (mm2)	Resistance (ohm/km)	Thickness of Sheath (mm)	Min.OD (mm)	Max.OD (mm)
10	1.9100	2.00	7.80	10.0
16	1.2100	2.00	9.00	11.5
25	0.7800	2.00	10.0	13.0
35	05540	2.00	11.5	14.5
50	0.3860	2.20	13.0	17.0
70	0.2720	2.40	15.0	19.0
95	0.2060	2.60	17.5	21.5
120	0.1610	2.80	19.5	24.0
150	0.1290	3.00	21.5	26.0
185	0.1060	3.20	23.0	29.0
240	0.0801	3.40	27.0	32.0
300	0.0641	3.60	30.0	35.0
400	0.0486	3.80	33.0	39.0

Applications

USE:

For connections for electrode holder and grounding clamp to arc welder, bus, inverter or transformer-style weld machines. Also suitable for certain 600V applications such as battery leads and jumper cables.

Flame Resistant Esab 95mm Polycab Welding Cable

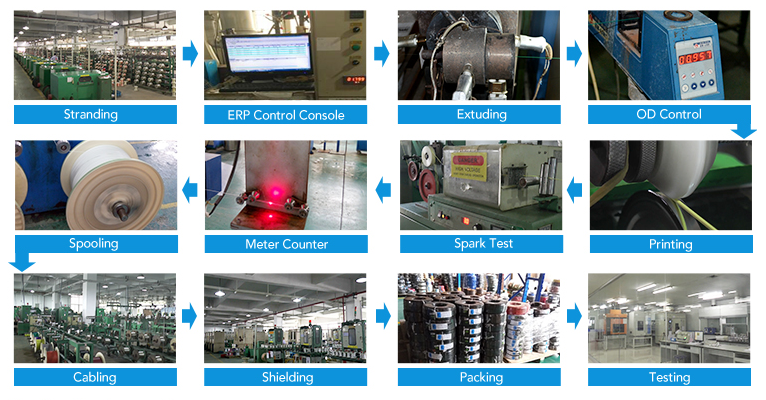

Produce Process

Flame Resistant Esab 95mm Polycab Welding Cable
